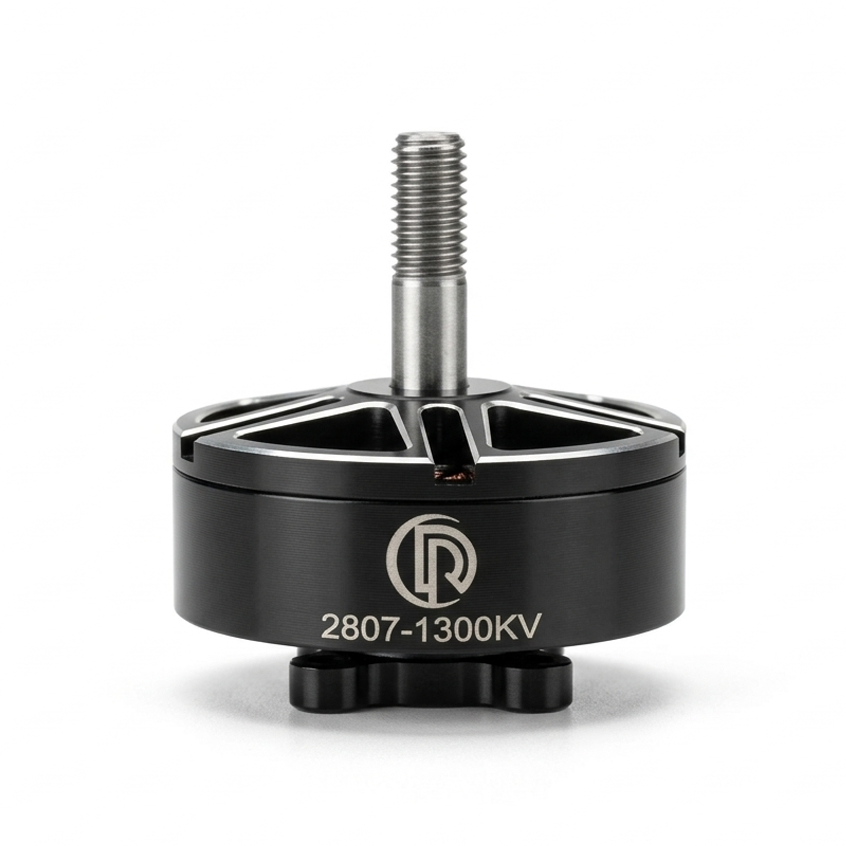

RCD 2807 Brushless Motor
A 2807 brushless motor with an aluminum alloy housing for 7-inch FPV platforms, available in 1300KV and compatible with 6S-8S battery systems, with custom KV options available.
| Model | 2807 |
|---|---|
| KV Options | 1300KV (Customization Available) |
| Rated Voltage | 6-8S |
| No-load Current | 1.0A max / 10V |
| Shaft Diameter (mm) | Φ4 mm |
| Slots/Poles (N/P) | 12/14 |
| Recommended Propeller | 7'' |
| Motor Dimensions | 34.5 x 20 mm |
| Motor Weight | 55 g |
| Wire | 250mm, #18 AWG Silicone Wire |
| Mounting Pattern | 19 x 19 mm, M3 |
Performance Testing Data
2807-1300KV
Test Propeller: GF7040
| Throttle % | SpeedRPM | VoltageV | CurrentA | Thrustg | TorqueN·m | IR Temp°C | Electric powerW | Shaft powerW | Motor Efficiencyg/W | Propeller efficiencyg/W | System efficiencyg/W |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10% | 5978 | 25.33 | 0.92 | 79.4 | 0.019 | 58.9 | 23.3 | — | 51 | 6.7 | — |
| 20% | 8658 | 25.27 | 2.42 | 245.8 | 0.042 | 56.8 | 61.2 | — | 62.3 | 6.5 | — |
| 30% | 10760 | 25.19 | 4.41 | 429 | 0.064 | 53.2 | 111.1 | — | 64.9 | 5.9 | — |
| 40% | 12525 | 25.08 | 6.77 | 631 | 0.088 | 52.8 | 169.8 | — | 68 | 5.5 | — |
| 50% | 14163 | 24.94 | 9.81 | 835.1 | 0.113 | 52.3 | 244.7 | — | 68.5 | 5 | — |
| 60% | 16110 | 24.74 | 14.41 | 1106.4 | 0.15 | 51.4 | 356.5 | — | 71 | 4.4 | — |
| 70% | 18010 | 24.44 | 20.76 | 1421.9 | 0.195 | 51.8 | 507.4 | — | 72.5 | 3.9 | — |
| 80% | 19666 | 24.11 | 28.09 | 1782.8 | 0.236 | 52.9 | 677.2 | — | 71.8 | 3.7 | — |
| 90% | 20916 | 3.74 | 40.5 | 2380.4 | 0.272 | 57.2 | 961.5 | — | 69.9 | 3.4 | — |
| 100% | 21580 | 23.6 | 43.6 | 2600.5 | 0.279 | 61.5 | 1029.0 | — | 68.5 | 3.3 | — |
The following measurements are from RCD load-test records. Results may vary with battery, propeller, environment, and installation conditions.
Customization Options
-
Electrical Performance
We can evaluate KV options and related electrical configurations based on your battery, ESC, propeller, and performance requirements.
-
Mechanical Configuration
Discuss motor dimensions, mounting patterns, shaft diameter, and shaft length to help ensure compatibility with your airframe and installation requirements.
-
Appearance & Branding
Customize the motor’s color and finish, and discuss logo placement, product engraving, and packaging options to align with your project or brand identity.
-
Lead Wire & Connection
Configure lead wire length, wire gauge, wire exit direction, and connector options to suit your aircraft’s wiring layout and integration needs.
Customization Process
Contact & Share Your Requirements
Tell us about your application, target specifications, and requested customizations.
Engineering Evaluation
Our engineering team reviews feasibility, compatibility, and any required validation.
Quotation
We prepare a quotation and estimated timeline based on the confirmed configuration, quantity, and delivery requirements.
Sample Confirmation
Review and confirm the sample’s specifications, appearance, and performance.
Production & Delivery
Once the sample is approved, we proceed with production and deliver according to the agreed schedule.
