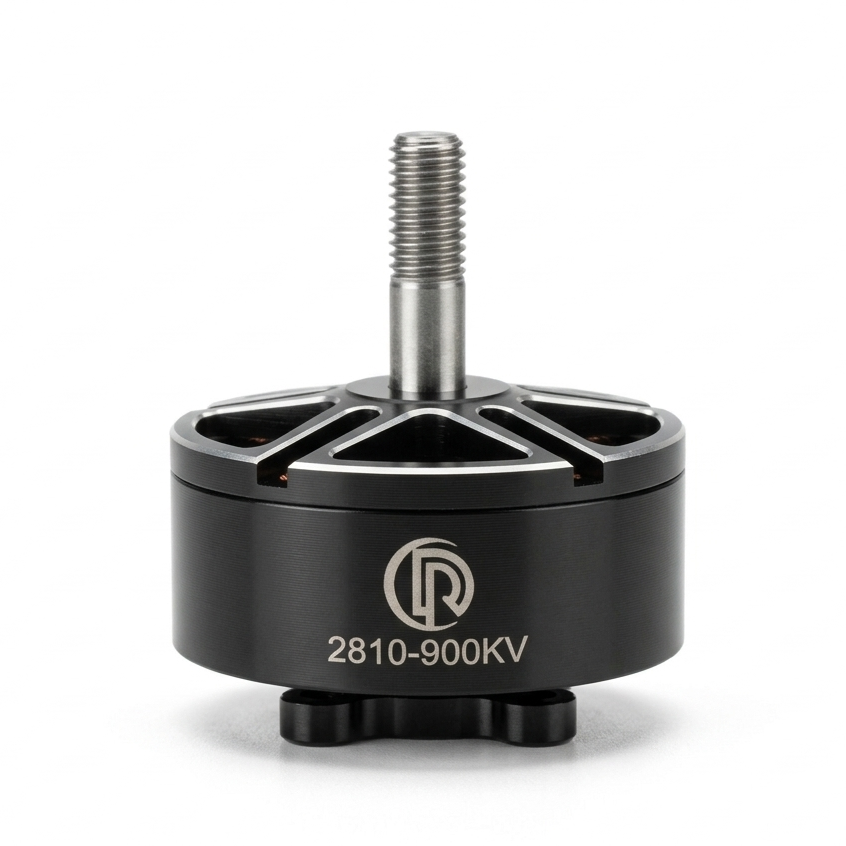

RCD 2810 Brushless Motor
A 2810 brushless motor with an aluminum alloy housing for 7-9 inch FPV platforms, available in 900KV and 1100KV options, compatible with 6S-8S battery systems, with custom KV options available.
| Model | 2810 |
|---|---|
| KV Options | 900KV / 1100KV (Customization Available) |
| Rated Voltage | 6-8S |
| No-load Current | 2.0A max / 10V |
| Shaft Diameter (mm) | Φ4 mm |
| Slots/Poles (N/P) | 12/14 |
| Recommended Propeller | 7''-9'' |
| Motor Dimensions | 34.5 x 23.5 mm |
| Motor Weight | 79 g |
| Wire | 250mm, #18 AWG Silicone Wire |
| Mounting Pattern | 19 x 19 mm, M3 |
Performance Testing Data
2810-1100KV
Test Propeller: GF7040
| Throttle % | SpeedRPM | VoltageV | CurrentA | Thrustg | TorqueN·m | IR Temp°C | Electric powerW | Shaft powerW | Motor Efficiencyg/W | Propeller efficiencyg/W | System efficiencyg/W |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10% | 1940.5 | 24.986 | 0.135 | 10 | -0.002 | 22.6 | 3.373 | -0.406 | -12.037 | -24.631 | 2.965 |
| 20% | 6810.909 | 24.99 | 1.316 | 120 | -0.022 | 22.9 | 32.887 | -15.691 | -47.712 | -7.648 | 3.649 |
| 30% | 9592.2 | 24.984 | 3.188 | 299 | -0.044 | 23.8 | 79.649 | -44.198 | -55.491 | -6.765 | 3.754 |
| 40% | 11497.6 | 24.987 | 5.316 | 501 | -0.066 | 25 | 132.831 | -79.466 | -59.825 | -6.305 | 3.772 |
| 50% | 13101.9 | 24.985 | 7.597 | 663 | -0.084 | 26.2 | 189.811 | -115.25 | -60.718 | -5.753 | 3.493 |
| 60% | 14621 | 24.984 | 10.155 | 848 | -0.103 | 27.6 | 253.713 | -157.704 | -62.158 | -5.377 | 3.342 |
| 70% | 16867 | 24.986 | 15.405 | 1189 | -0.144 | 29.5 | 384.909 | -254.348 | -66.08 | -4.675 | 3.089 |
| 80% | 19078.64 | 24.986 | 21.557 | 1483 | -0.176 | 31.8 | 538.623 | -351.632 | -65.284 | -4.217 | 2.753 |
| 90% | 21031.2 | 24.985 | 29.571 | 1791 | -0.211 | 34.9 | 738.831 | -464.703 | -62.897 | -3.854 | 2.424 |
| 100% | 21422.55 | 24.984 | 31.866 | 1877 | -0.226 | 38.1 | 796.14 | -507 | -63.682 | -3.702 | 2.358 |
The measurements are from RCD load-test records. Results may vary with battery, propeller, environment, and installation conditions.
Customization Options
-
Electrical Performance
We can evaluate KV options and related electrical configurations based on your battery, ESC, propeller, and performance requirements.
-
Mechanical Configuration
Discuss motor dimensions, mounting patterns, shaft diameter, and shaft length to help ensure compatibility with your airframe and installation requirements.
-
Appearance & Branding
Customize the motor’s color and finish, and discuss logo placement, product engraving, and packaging options to align with your project or brand identity.
-
Lead Wire & Connection
Configure lead wire length, wire gauge, wire exit direction, and connector options to suit your aircraft’s wiring layout and integration needs.
Customization Process
Contact & Share Your Requirements
Tell us about your application, target specifications, and requested customizations.
Engineering Evaluation
Our engineering team reviews feasibility, compatibility, and any required validation.
Quotation
We prepare a quotation and estimated timeline based on the confirmed configuration, quantity, and delivery requirements.
Sample Confirmation
Review and confirm the sample’s specifications, appearance, and performance.
Production & Delivery
Once the sample is approved, we proceed with production and deliver according to the agreed schedule.
