RCD 2812 Brushless Motor

A 2812 brushless motor with an aluminum alloy housing for 7-10 inch FPV platforms, available in 900KV and 1115KV options, compatible with 6S-8S battery systems, with custom KV options available.

900KV
1115KV
Customization Available
Send InquiryEmail Us

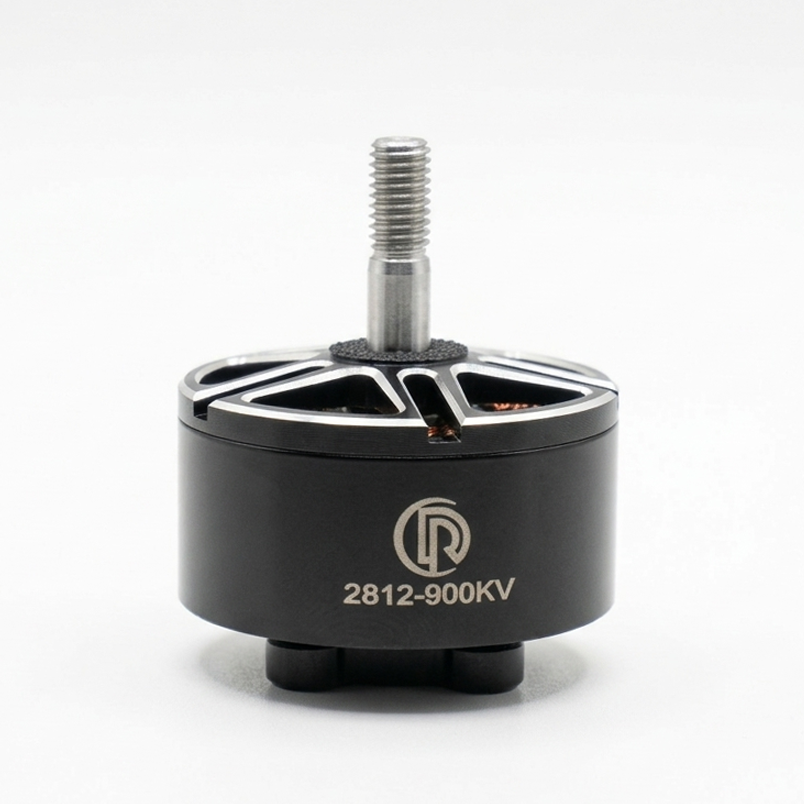

RCD 2812 Brushless Motor for FPV
SPECIFICATIONS
Model2812
KV Options900KV / 1115KV (Customization Available)
Rated Voltage6-8S
No-load Current1.2A max / 10V
Shaft Diameter (mm)Φ4 mm
Slots/Poles (N/P)12/14
Recommended Propeller7''-10''

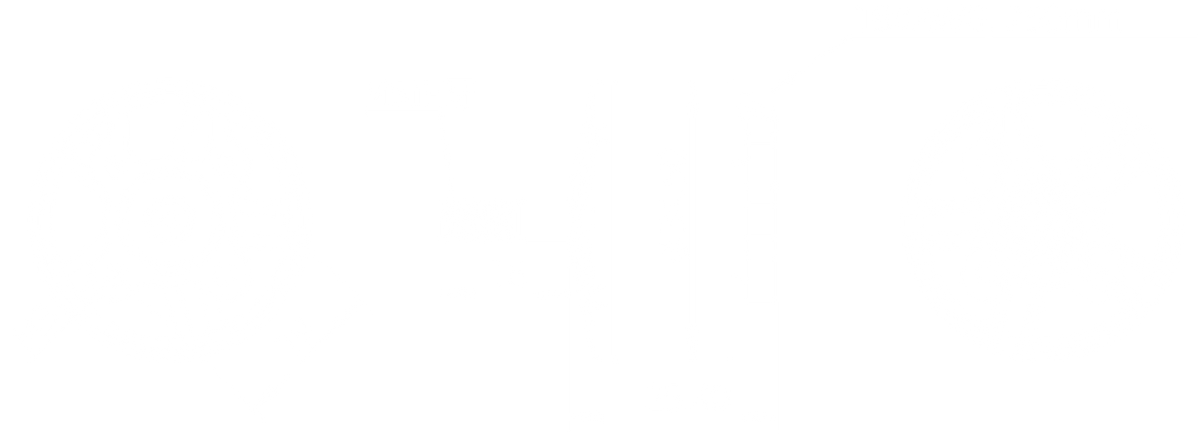

Motor Dimensions34.5 x 25.4 mm
Motor Weight81 g
Wire250mm, #18 AWG Silicone Wire
Mounting Pattern19 x 19 mm, M3

Performance Testing Data

2811-1115KV

Test Propeller: GF9045

Throttle %SpeedRPMVoltageVCurrentAThrustgTorqueN·mIR Temp°CElectric powerWShaft powerWMotor Efficiencyg/WPropeller efficiencyg/WSystem efficiencyg/W
10%1341.72725.1870.108140.00325.32.720.42215.51533.1755.147
20%4613.525.1871.6152050.0425.640.67719.32547.50810.6085.04
30%6634.2525.1884.264940.08526.4107.30159.05355.0358.3654.604
40%8238.925.1877.6648210.13327.7193.033114.74959.4457.1554.253
50%10090.925.18814.20212640.19829.8357.72209.2358.496.0413.533
60%11717.1825.18522.12517410.27433.3557.218336.20460.3365.1783.124
70%13084.125.18832.57722940.34238.8820.549468.59657.1084.8952.796
80%14167.8225.18544.17627390.40848.11112.573605.32954.4084.5252.462
90%14920.725.18455.63530250.4663.61401.112718.74651.2984.2092.159
100%14712.125.18455.92329040.43379.51408.365667.147.3674.3532.062

The measurements are from RCD load-test records. Results may vary with battery, propeller, environment, and installation conditions.

2812-900KV

Test Propeller: GF9045

Throttle %SpeedRPMVoltageVCurrentAThrustgTorqueN·mIR Temp°CElectric powerWShaft powerWMotor Efficiencyg/WPropeller efficiencyg/WSystem efficiencyg/W
10%1284.425.1830.081140.00323.22.040.40419.80434.6536.863
20%4094.825.1821.0541580.03123.426.54213.29350.08311.8865.953
30%5835.90925.1842.713690.0642468.24939.11357.3099.4345.407
40%7234.825.1854.9266090.10124.8124.06176.5261.6797.9594.909
50%8652.825.1858.1639310.14226.1205.585128.66962.5877.2364.529
60%10275.7325.18313.4313320.20727.8338.208222.74765.8615.983.938
70%11687.2725.18120.08218130.26630.1505.685325.55464.3795.5693.585
80%13031.625.18327.80122050.33833.8700.113461.25765.8834.783.149
90%14062.825.18337.74327210.40639.9950.482597.89762.9054.5512.863
100%14359.1825.18438.84326520.39446978.222592.45460.5644.4762.711

The following measurements are from RCD load-test records. Results may vary with battery, propeller, environment, and installation conditions.
