4xxx SERIES

RCD 4715 Brushless Motor

A 4715 brushless motor with an aluminum alloy housing for 13-18 inch FPV platforms, available in 500KV with custom KV options and compatible with 6S-12S battery systems.

500KV
Customization Available
Send InquiryEmail Us

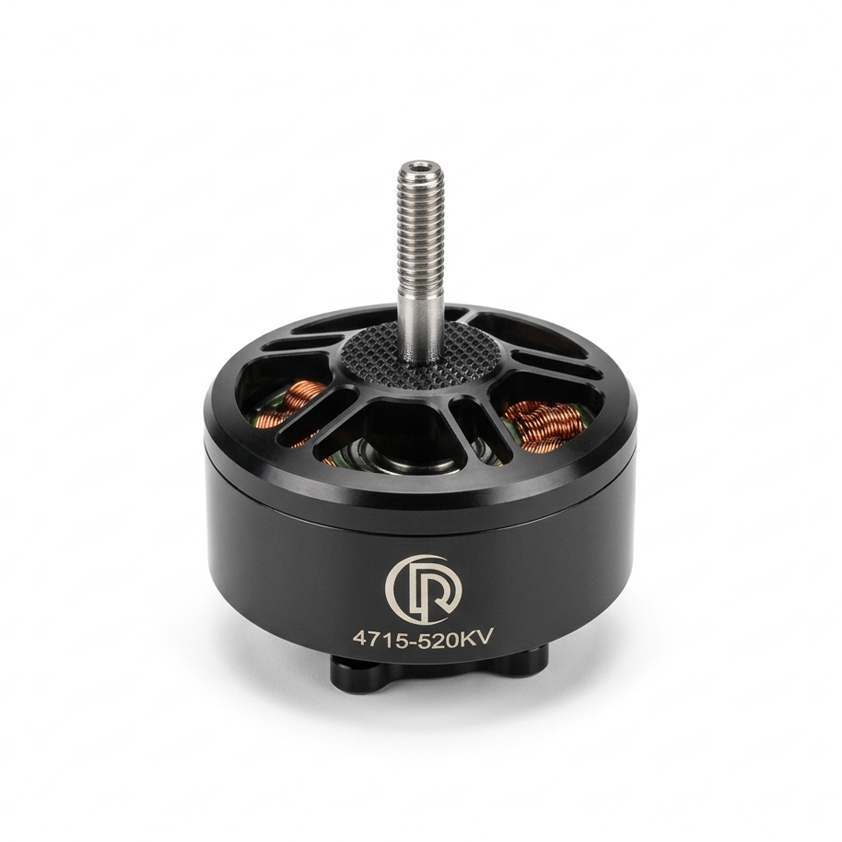

RCD 4715 Brushless Motor for FPV
SPECIFICATIONS
Model4715
KV Options500KV (Customization Available)
Rated Voltage6-12S
No-load Current1.5A / 10V
Shaft Diameter (mm)Φ6 mm
Slots/Poles (N/P)12/14
Recommended Propeller13''-18''
Motor Dimensions56 * 42.1 mm
Motor Weight295 g
Wire400mm, #14 AWG Silicone Wire
Mounting Pattern19 x 19 mm, M4

Performance Testing Data

4715-500KV

Test Propeller: HQ15X7X3

Throttle %SpeedRPMVoltageVCurrentAThrustgTorqueN·mIR Temp°CElectric powerWShaft powerWMotor Efficiencyg/WPropeller efficiencyg/WSystem efficiencyg/W
10%414.723.9790.03412-0.00719.90.815-0.304-37.301-39.47414.724
20%1731.723.9770.896248-0.06420.121.483-11.606-54.024-21.36811.544
30%2682.923.9772.572600-0.14220.461.669-39.895-64.692-15.0399.729
40%3781.323.9786.4511224-0.28720.5154.682-113.645-73.47-10.777.913
50%4815.823.97812.8761999-0.45721308.741-230.469-74.648-8.6746.475
60%5740.81823.97822.0452886-0.65922.2528.595-396.176-74.949-7.2855.46
70%6577.223.97633.7023791-0.87923.9808.039-605.422-74.925-6.2624.692
80%7382.81823.97549.1184869-1.11826.31177.604-864.356-73.4-5.6334.135
90%811923.97667.8625903-1.35330.51627.059-1150.347-70.701-5.1313.628
100%821723.97473.916286-1.44334.51771.918-1241.676-70.075-5.0633.548

The measurements are from RCD load-test records. Results may vary with battery, propeller, environment, and installation conditions.

Customization Options

  • Electrical Performance

    We can evaluate KV options and related electrical configurations based on your battery, ESC, propeller, and performance requirements.

  • Mechanical Configuration

    Discuss motor dimensions, mounting patterns, shaft diameter, and shaft length to help ensure compatibility with your airframe and installation requirements.

  • Appearance & Branding

    Customize the motor’s color and finish, and discuss logo placement, product engraving, and packaging options to align with your project or brand identity.

  • Lead Wire & Connection

    Configure lead wire length, wire gauge, wire exit direction, and connector options to suit your aircraft’s wiring layout and integration needs.

Choose a standard configuration or discuss adjustments for your project.

  • Standard Product

    For projects that match an existing model and configuration.

    • Choose from available motor models and KV options.
    • Review published specifications and test data.
    • Contact us to confirm pricing, availability, and lead time.
    Browse All Motors

  • Custom Project

    For projects that require changes to performance, appearance, or connections.

    • Tell us about your platform and the changes you need.
    • Share your target specifications, drawings, or reference images.
    • Our engineering team will review feasibility before we prepare a quotation.
    Discuss a Custom Option

Customization Process

Contact & Share Your Requirements

Tell us about your application, target specifications, and requested customizations.

Engineering Evaluation

Our engineering team reviews feasibility, compatibility, and any required validation.

Quotation

We prepare a quotation and estimated timeline based on the confirmed configuration, quantity, and delivery requirements.

Sample Confirmation

Review and confirm the sample’s specifications, appearance, and performance.

Production & Delivery

Once the sample is approved, we proceed with production and deliver according to the agreed schedule.
