5xxx SERIES

RCD 5330 Brushless Motor

A 5330 brushless motor with an aluminum alloy housing for 18-22 inch FPV platforms, available in 300KV and compatible with 6S-12S battery systems, with custom KV options available.

300KV
Customization Available
Send InquiryEmail Us

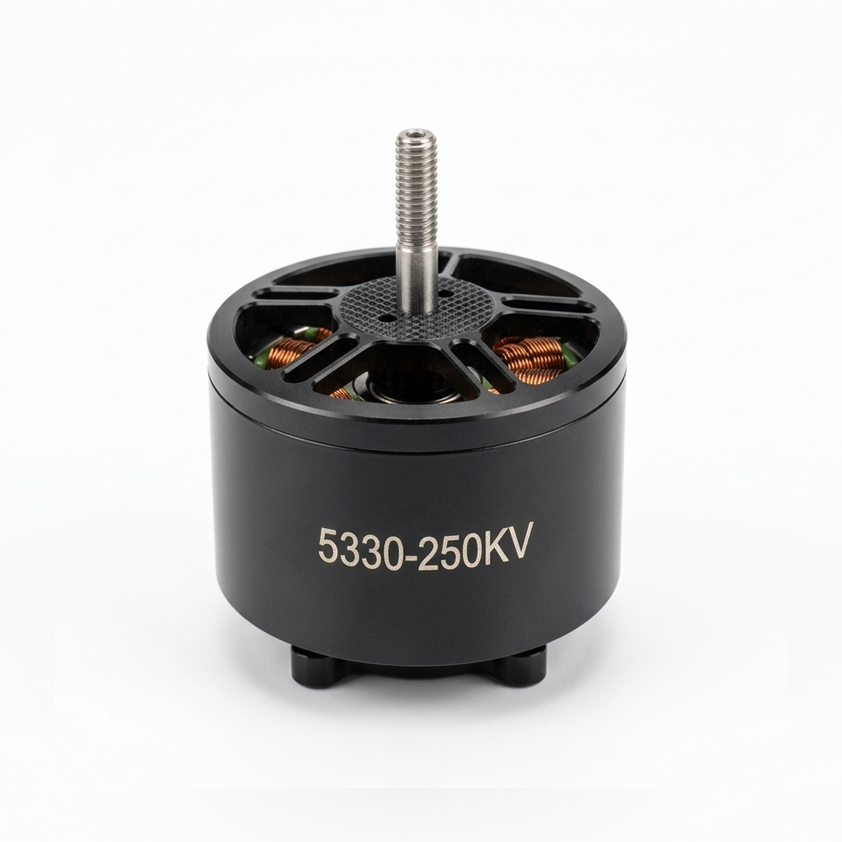

RCD 5330 Brushless Motor for FPV
SPECIFICATIONS
Model5330
KV Options300KV (Customization Available)
Rated Voltage6-12S
No-load Current3.0A max / 11.1V
Shaft Diameter (mm)Φ8 mm
Slots/Poles (N/P)12/14
Recommended Propeller18''-22''
Motor Dimensions62.8 x 56.5 mm
Motor Weight650 g
Wire750mm, #14 AWG Silicone Wire
Mounting Pattern19 x 19 mm, M4

Performance Testing Data

5330-300KV

Test Propeller: 20*13E

Throttle %SpeedRPMVoltageVCurrentAThrustgTorqueN·mIR Temp°CElectric powerWShaft powerWMotor Efficiencyg/WPropeller efficiencyg/WSystem efficiencyg/W
30%210029.63.512080.2828.2103.662.460.2——
40%320029.51026000.5928.5295.0197.967.1——
50%290029.517.239081.1428.8507.4345.568.1——
60%450429.53256701.3630.4944.0641.968.0——
70%528729.54467021.5831.01298.0874.967.4——
80%587029.562.392302.0034.11837.91229.566.9——
90%635429.583.6110602.4136.72466.21600.664.9——
100%695629.5116134083.0455.63422.02217.564.8——

The measurements are from RCD load-test records. Results may vary with battery, propeller, environment, and installation conditions.

Customization Options

  • Electrical Performance

    We can evaluate KV options and related electrical configurations based on your battery, ESC, propeller, and performance requirements.

  • Mechanical Configuration

    Discuss motor dimensions, mounting patterns, shaft diameter, and shaft length to help ensure compatibility with your airframe and installation requirements.

  • Appearance & Branding

    Customize the motor’s color and finish, and discuss logo placement, product engraving, and packaging options to align with your project or brand identity.

  • Lead Wire & Connection

    Configure lead wire length, wire gauge, wire exit direction, and connector options to suit your aircraft’s wiring layout and integration needs.

Choose a standard configuration or discuss adjustments for your project.

  • Standard Product

    For projects that match an existing model and configuration.

    • Choose from available motor models and KV options.
    • Review published specifications and test data.
    • Contact us to confirm pricing, availability, and lead time.
    Browse All Motors

  • Custom Project

    For projects that require changes to performance, appearance, or connections.

    • Tell us about your platform and the changes you need.
    • Share your target specifications, drawings, or reference images.
    • Our engineering team will review feasibility before we prepare a quotation.
    Discuss a Custom Option

Customization Process

Contact & Share Your Requirements

Tell us about your application, target specifications, and requested customizations.

Engineering Evaluation

Our engineering team reviews feasibility, compatibility, and any required validation.

Quotation

We prepare a quotation and estimated timeline based on the confirmed configuration, quantity, and delivery requirements.

Sample Confirmation

Review and confirm the sample’s specifications, appearance, and performance.

Production & Delivery

Once the sample is approved, we proceed with production and deliver according to the agreed schedule.
