6xxx SERIES

RCD 6215 Brushless Motor

A 6215 brushless motor with an aluminum alloy housing for 15-20 inch FPV platforms, available in 200KV and compatible with 6S-12S battery systems, with custom KV options available.

200KV
Customization Available
Send InquiryEmail Us

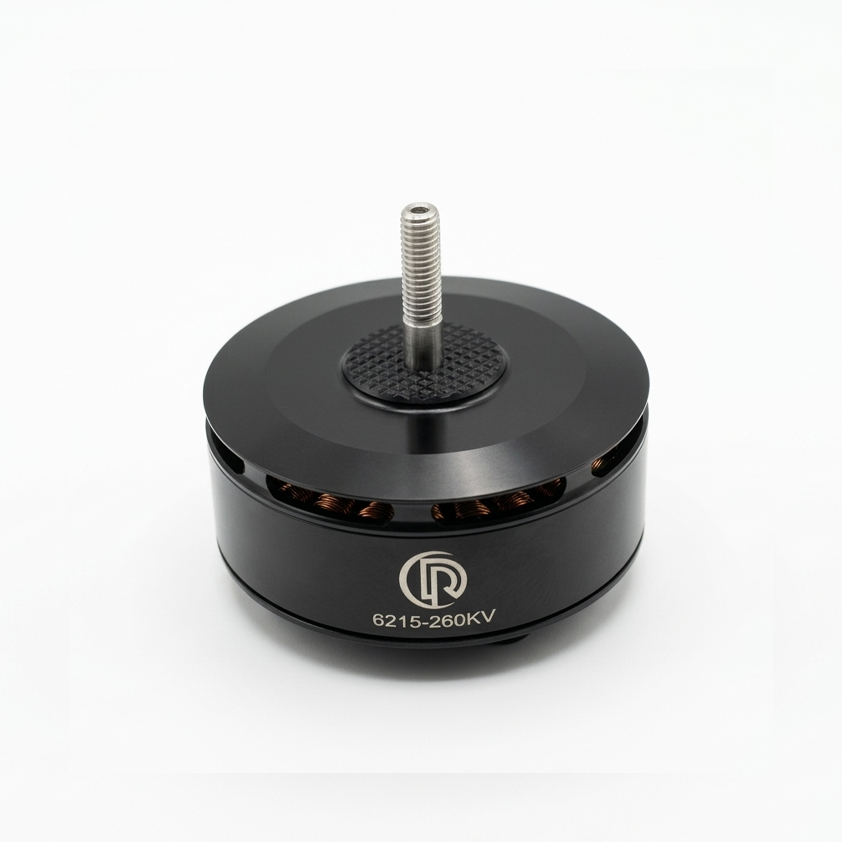

RCD 6215 Brushless Motor for FPV
SPECIFICATIONS
Model6215
KV Options200KV (Customization Available)
Rated Voltage6-12S
No-load Current0.8A max / 10V
Shaft Diameter (mm)Φ8 mm
Slots/Poles (N/P)12/14
Recommended Propeller15''-20''
Motor Dimensions68.6 x 35.2 mm
Motor Weight320 g
Wire600mm, #16 AWG Silicone Wire
Mounting Pattern19 x 19 mm, M4

Performance Testing Data

6215-200KV-44V

Test Propeller: 18X10X3

Throttle %SpeedRPMVoltageVCurrentAThrustgTorqueN·mIR Temp°CElectric powerWShaft powerWMotor Efficiencyg/WPropeller efficiencyg/WSystem efficiencyg/W
10%889.76544.3960.02540.01730.31.111.584142.7032.5253.604
20%3021.77644.3930.8174040.1493036.26947.15130.0018.56811.139
30%4498.86544.3932.31110010.31930102.592150.287146.496.6619.757
40%6139.11844.3935.50219290.57629.7244.25370.303151.6085.2097.898
50%7742.36544.39610.86531220.95630482.363775.104160.6894.0286.472
60%921244.39718.18544491.33330.6807.3591285.916159.2743.465.511
70%10539.2544.39328.34460951.8131.41258.2751997.638158.763.0514.844
80%11877.03944.38640.44377842.22332.71795.1032764.88154.0232.8154.336
90%13065.444.38457.3895172.805352546.7543837.816150.6942.483.737
100%13368.3444.38360.87997282.85337.82701.9933993.998147.8172.4363.6

The measurements are from RCD load-test records. Results may vary with battery, propeller, environment, and installation conditions.

6215-200KV-34V

Test Propeller: GF18X10X3

Throttle %SpeedRPMVoltageVCurrentAThrustgTorqueN·mIR Temp°CElectric powerWShaft powerWMotor Efficiencyg/WPropeller efficiencyg/WSystem efficiencyg/W
10%617.23533.5980100.00727.400.452022.1240
20%2432.1633.5970.5862680.09727.319.68824.705125.48310.84813.612
30%3577.2833.5981.6126320.20427.554.1676.421141.1028.2711.669
40%4755.3133.5983.37911290.35927.5113.528178.773157.476.3159.945
50%6068.9233.5966.70618510.57527.7225.295365.433162.2025.0658.216
60%725533.58911.38727560.828382.478607.793158.9094.5347.206
70%8442.2633.58717.87737461.08428.1600.435958.333159.6063.9096.239
80%952133.58826.43949341.4528.6888.0331445.7162.7983.4135.556
90%10602.833.58935.7959741.74429.41202.151936.4161.0783.0854.969
100%10845.533.59338.86463851.83530.31305.562084.07159.6313.0644.891

The following measurements are from RCD load-test records. Results may vary with battery, propeller, environment, and installation conditions.

6215-200KV-25V

Test Propeller: GF18X10X3

Throttle %SpeedRPMVoltageVCurrentAThrustgTorqueN·mIR Temp°CElectric powerWShaft powerWMotor Efficiencyg/WPropeller efficiencyg/WSystem efficiencyg/W
10%386.7825.1920.05630.00826.31.4110.32422.9629.2592.126
20%1926.525.1930.4851220.06126.212.21912.306100.7129.9149.984
30%2854.4625.1981.2063440.13126.430.38939.158128.8568.78511.32
40%365025.22.1886020.20426.555.13877.974141.4167.72110.918
50%464025.24.14510320.32226.6104.454156.46149.7886.5969.88
60%5647.525.1957.26816580.49126.6183.117290.38158.5765.719.054
70%6601.5725.19111.23122170.66626.9282.92460.416162.7374.8157.836
80%7498.7125.18916.49629430.88727.1415.518696.528167.6294.2257.083
90%8369.6725.18923.28237681.11227.5586.45974.634166.1923.8666.425
100%8587.1825.19324.95239891.15927.9628.6161042.23165.7973.8276.346

The following measurements are from RCD load-test records. Results may vary with battery, propeller, environment, and installation conditions.

Customization Options

  • Electrical Performance

    We can evaluate KV options and related electrical configurations based on your battery, ESC, propeller, and performance requirements.

  • Mechanical Configuration

    Discuss motor dimensions, mounting patterns, shaft diameter, and shaft length to help ensure compatibility with your airframe and installation requirements.

  • Appearance & Branding

    Customize the motor’s color and finish, and discuss logo placement, product engraving, and packaging options to align with your project or brand identity.

  • Lead Wire & Connection

    Configure lead wire length, wire gauge, wire exit direction, and connector options to suit your aircraft’s wiring layout and integration needs.

Choose a standard configuration or discuss adjustments for your project.

  • Standard Product

    For projects that match an existing model and configuration.

    • Choose from available motor models and KV options.
    • Review published specifications and test data.
    • Contact us to confirm pricing, availability, and lead time.
    Browse All Motors

  • Custom Project

    For projects that require changes to performance, appearance, or connections.

    • Tell us about your platform and the changes you need.
    • Share your target specifications, drawings, or reference images.
    • Our engineering team will review feasibility before we prepare a quotation.
    Discuss a Custom Option

Customization Process

Contact & Share Your Requirements

Tell us about your application, target specifications, and requested customizations.

Engineering Evaluation

Our engineering team reviews feasibility, compatibility, and any required validation.

Quotation

We prepare a quotation and estimated timeline based on the confirmed configuration, quantity, and delivery requirements.

Sample Confirmation

Review and confirm the sample’s specifications, appearance, and performance.

Production & Delivery

Once the sample is approved, we proceed with production and deliver according to the agreed schedule.
